Features:
Speedometer
- High speed recall
- 0-60 MPH time
- 1/4 mile elapsed time recall
- Reads up to 160 MPH
- Odometer and trip meter
- Calibrate to adjust for different tire sizes, wheel sizes, and gear ratios
- Electronic speed sensor included, please select option for your vehicle
Tachometer
Reads from 0 to 8000 RPM in 100 RPM increments
Selectable for 8-6-4-cylinder engines
*If using with an LS engine you may also need the Intellitronix LS swap kit (8014LS)
Fuel
- reads in percentage (empty-full) 0-100% range in 1% increments
- Ohm ranges include:
- Ford/Chrysler 73 - 10 ohm
- GM 0 - 90 ohm
- VDO 10 - 180 ohm
- Universal 240 - 33
Water Temperature Gauge
Reads from 100 to 260°F
Sending unit included
Voltmeter
Reads 10.0 – 18.0 volts
No sender required
Oil Pressure Gauge
Reads from 0–100 psi
Includes sending unit
Indicators
Turn signal indicators
High beam indicator
Parking brake indicator
Check Engine Light
Other Features:
- Automatic night time dimming (50%)
- Clock
- Chrome Bezel
- U-brackets for mounting
Optional add ons:
GPS Speedometer Sending Unit (S9020): Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Use to bypass vehicle transmission or computer, picks up speed from satellite signal
Universal Gauge Harness (QCWH20): 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Please note this does not plug into the factory harness
LS Swap Kit (8014LS): Required for GM LS engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor to boost tach signal

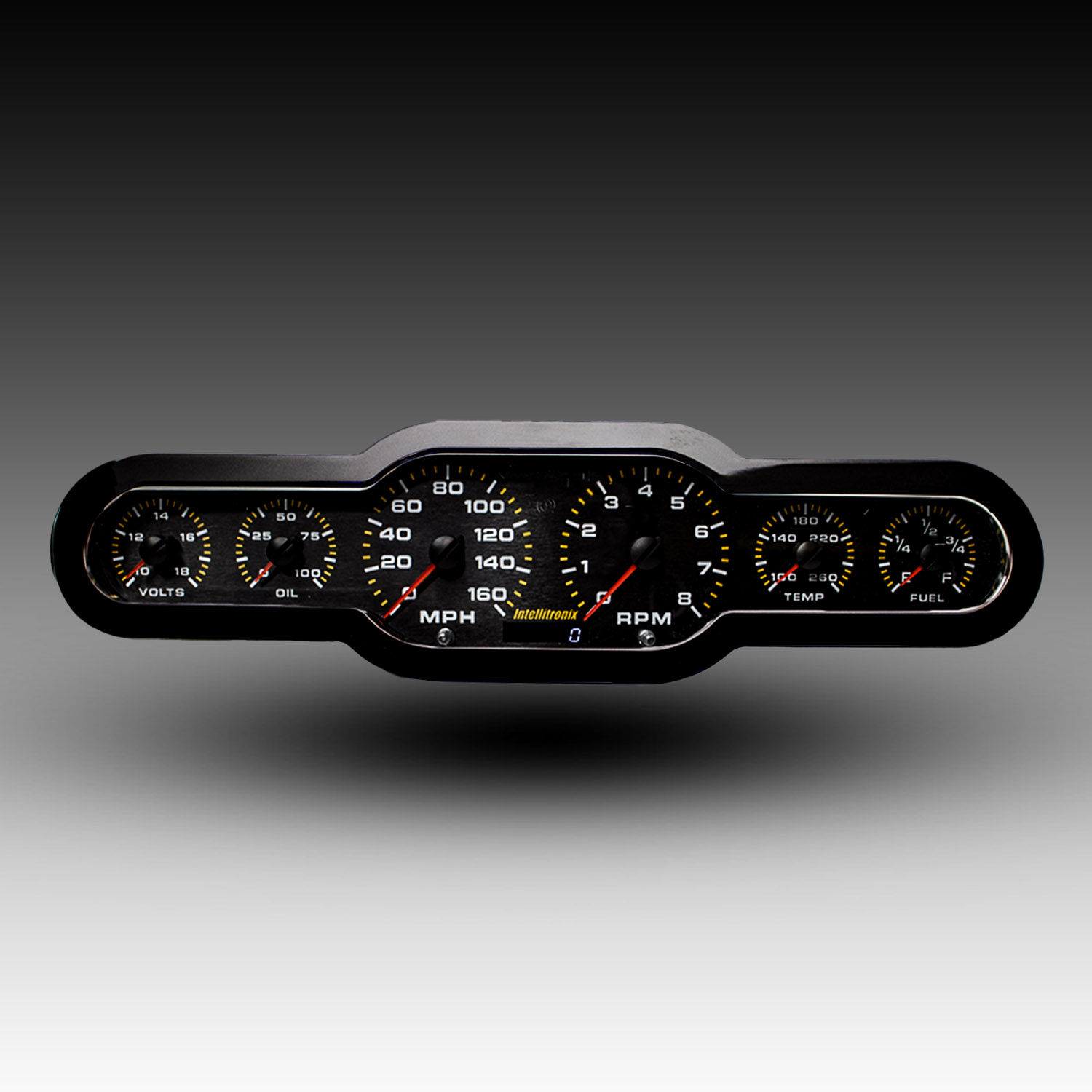

6-Gauge Analog Universal Panel AP20002
Please contact support@intellitronix.com for information on our return policy
CLICK HERE for installation guide
