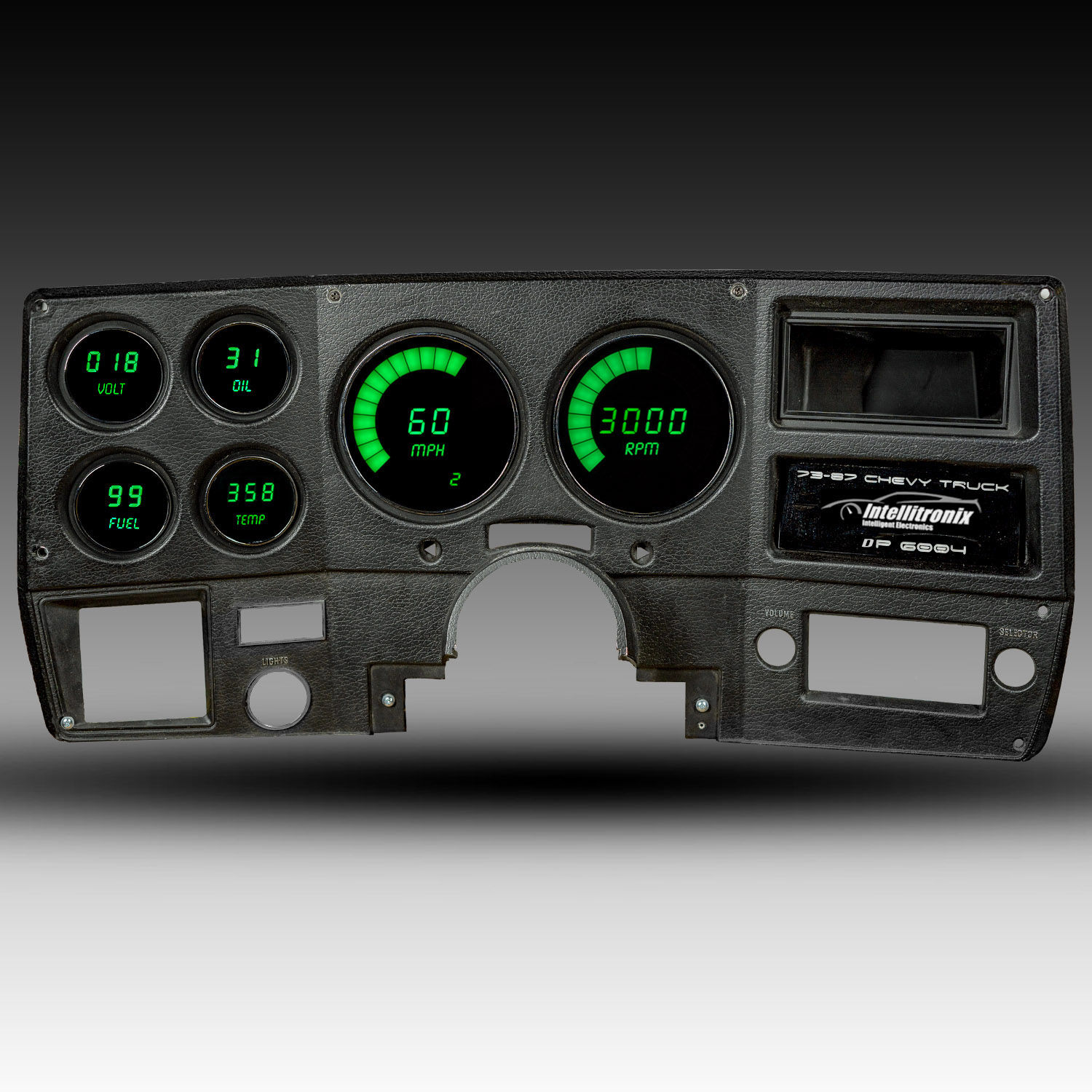

1973-87 Chevy Truck LED Digital Gauge Panel - DP6004



The 1973-87 Chevy Truck has the look and feel of elegance and will make you the envy of all Chevy truck lovers with your new 73-87 Chevy Truck LED Digital Replacement Gauge Panel by Intellitronix. Complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.



Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

Tachometer reads 0-9900 RPM in 100 RPM increments.



Water Temperature displays 100-300°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one.



Oil Pressure displays 0-100 PSI range. Oil pressure sender included.



Voltmeter displays 7.0-25.5 volts range and no sending unit is required.



Fuel Level displays 0-99% range in 1% increments and works with existing GM fuel level sending unit.



The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.



Note: When installed the gauge cluster may disable the cruise control system.



Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.



BEZEL NOT INCLUDED



FEATURES:



AVAILABLE COLORS:  White, Red, Blue, Teal and Green

SPEEDOMETER READING:  Order your speedometer in either MPH or KPH



ACCESSORIES:  All required sending and sensor units are included.

1973-1987 Chevy Truck LED Digital DP6004

SKU: DP6004
$453.95 Regular Price
$376.78Sale Price

St Patrick's 17

LED Color Choices
  • If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, your LS engine has a Tach output equivalent to a 4 cylinder instead of 8, please send a note to us letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
