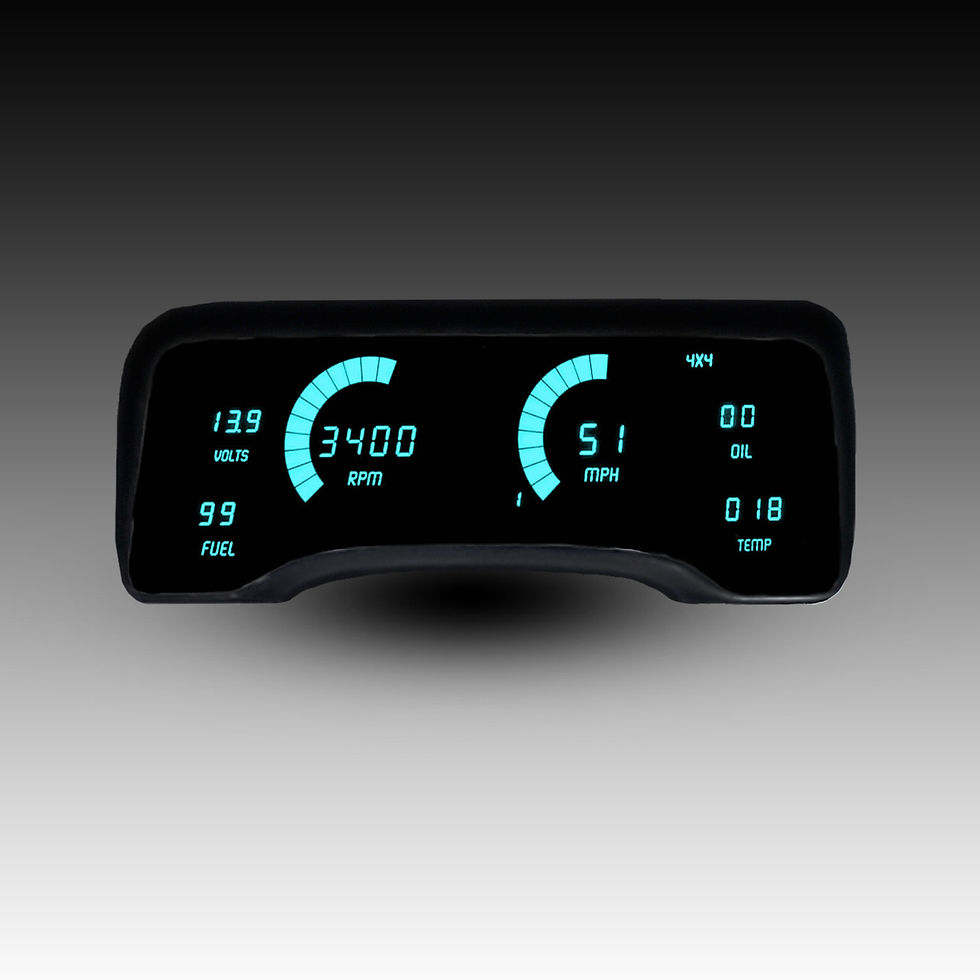

1997-2001 Jeep XJ LED Digital Gauge Panel - DP6015



Experience the thrill of offroading in your classic Jeep XJ equipped with a personalized 1997-2001 Jeep XJ LED Digital Gauge Replacement Dash as you ride through the mud! The modernized dash kit comes complete with direct fit printed circuit board, custom fit "smoked" plexiglass faceplate, universal temperature & oil pressure sending units and a speedsensor for vehicles without electronic transmission or cruise control, and instructions for installation.



Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or our universal speedometer S9013 sending unit, if your vehicle is not equipped with a functional cruise control.

Tachometer displays 0-9999 RPM In 9999, 9990, 9900 RPM Increments and is programmable for 4-6-8-cylinder engines.

Water Temperature displays 100-300°F range and sending unit is included. If you need a 3/8" bushing, please note on your order, because we send the more common 1/2" bushing--otherwise, you will have to supply the bushing on your own.



Oil Pressure reads 0-100 PSI and sending unit S8868 is included.



Voltmeter reads 7.0-18.0 volts range


Fuel Level reads 0-99% range in 1% increments and is programmable for 73-10-20, 220-20, 0-90, 10-180 ohms.

The panel includes turn signals, high beam, brake, and 4-wheel drive indicators making it the ultimate way to keep the ride you love cruising through the times.



Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.



BEZEL NOT INCLUDED



DOES NOT WORK WITH A CAN BUS SYSTEM DIRECTLY



FEATURES:

AVAILABLE COLORS:  White, Red, Blue, Teal and Green

SPEEDOMETER READING:  Order your speedometer in either MPH or KPH.



GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes.



Universal Gauge Harness: Designed for performance and professional appearance, this 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Includes connectors for: Water temp, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator.



LS Swap Kit: Perfect for GM engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor.

1997-2001 Jeep XJ LED Digital Gauge Panel

SKU: DP6015
$487.55Price
colors
