1970-1976 Dodge Duster/Dart LED Digital Gauge Panel - DP1805




This cluster also fits these additional vehicles:

-1968-1977 Scamp - 1968-1977 Valiant -1970-1976 Dart - 1970-1976 Duster - 1973-1976 Dart Sport - 1972 Demon

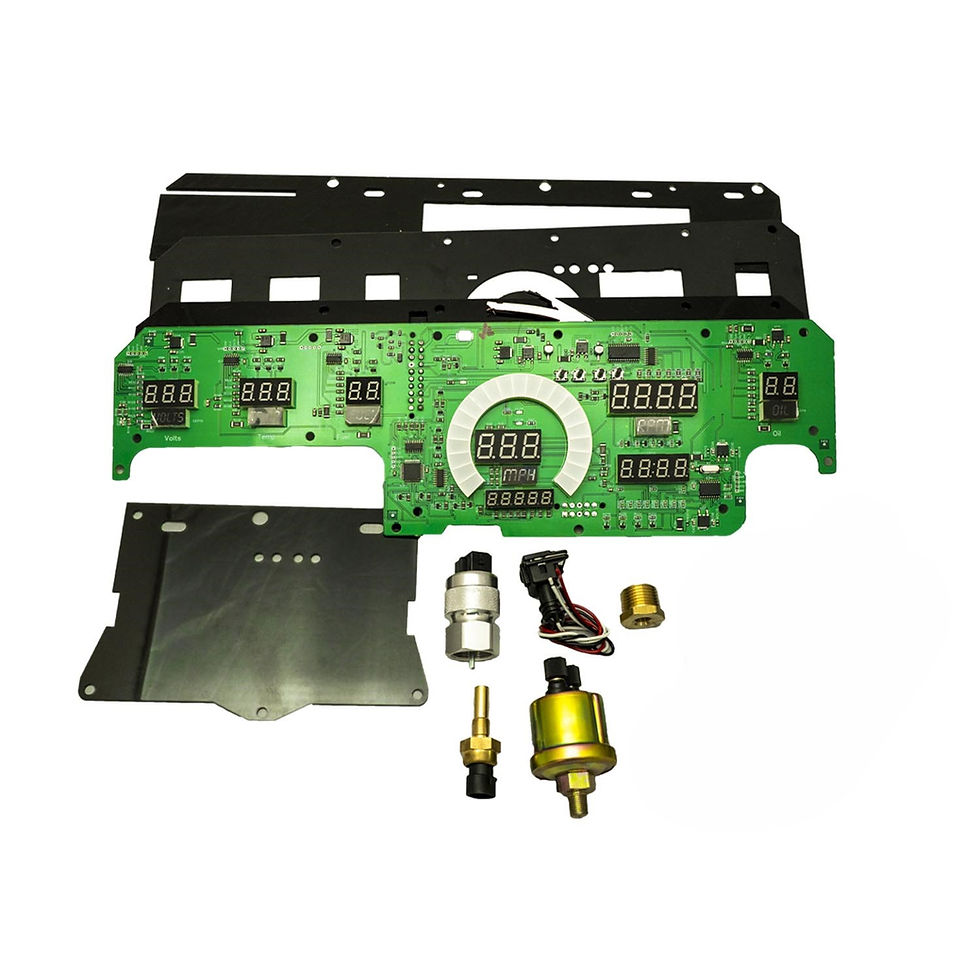

Make your friends jealous with this elegant 1970-1976 Dodge Duster/Dart LED Digital Replacement Gauge Panel from Intellitronix. The vibrant and crisp easy to read lights will increase accuracy and give the interior of your car a completely high-tech look. Comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with senders and sensors for vehicles without electronic transmission or cruise control, and instructions for installation.


Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use Intellitronix S9013 universal speedometer sending unit included, if your vehicle is not equipped with a functional cruise control.

Tachometer displays 0-9999 RPM, 1-2-4-6-8-10-12 Cylinder, High Speed recall


Water Temperature displays 18-275°F range with sending unit S8023 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please make a note at check-out; otherwise, you will have to get the correct bushing on your own.


Oil Pressure reads 0-100 PSI range and the oil pressure sender is included.


Voltmeter displays 7.0 to 18.0 volt range and no sending unit is required.


Fuel Level reads 0-99% range in 1% increments and works with existing Chrysler 73-10 ohms fuel level sending unit.

1970-1976 Dodge Duster/Dart with this elegant LED Digital Replacement Gauge Panel features turn signals and high beam indicator.


Know Before You Buy!


If you have a LS engine, you may need metric to nonmetric adapters p/n 8014LS from for our sending units. If not included in your engine kit, you may have to purchase them separately. Your LS engine has a Tachometer output equivalent to a 4-cylinder, instead of 8-cylinder. Include a note in the comments when you check out as to which cylinder engine you have, so we can set the tachometer correctly. The tachometer is programmable, so you can set it yourself if needed.





AVAILABLE COLORS:  White, Red, Blue, Teal and Green

SPEEDOMETER READING:  Order your speedometer in either MPH or KPH


ACCESSORIES:  All required sending and sensor units are included.

1970-1976 Dodge Duster/Dart Digital Gauge Panel DP1805

LED Color Choices
  • If you have a LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, if your LS engine is 4-cylinder, then please send a note to seller letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
